EVOline® Backflip

EVOline® Backflip

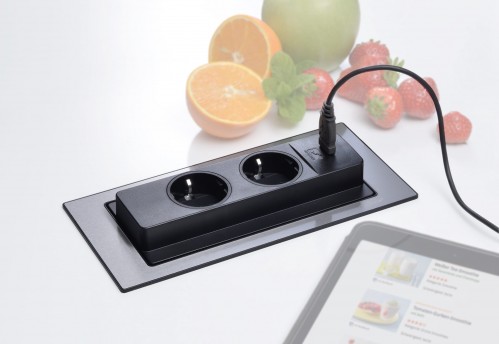

  • Stainless steel or black and white optionsBackflip_Image_w_Fruit.jpg
  • Soft-touch to open, rotating to open position
  • Flips 180˚ and presents its functional elements
  • Modern rectangular shape
  • Surface or flush-mount
  • 2x power sockets
  • USB charger inbuilt as standard (1000mA)
  • Slim profile (53mm deep)
  • Red-dot design award winner
  • Easy installation
  • Protected against spillages
  • Overall dimensions - 226mm long x 105mm wide x 53mm deep
  • Cutout dimensions - 215mm x 88mm - radius 5mm
  • Flush-fitted rebate depth - 2.7mm - radius 2.5mm
  • Maximum benchtop thickness - 40mm

Installation Instructions for EVOline® Backflip

  • The EVOline Backflip can be installed into benchtops where the surface material is up to 40mm thick.
  • The unit can be installed as "surface-mounted" or "flush-fitted".
  • The cutout dimensions are supplied with the unit and are shown in PDF specs below.
  • The Backflip comes with a stainless steel lid which may be lacquered, black or white.
  • For flush fitting a "rebate" in the benchtop is required. Refer to dimensional drawings shown in PDF specs below.
  • The Backflip is secured in place with fitting wedges. These wedges can be further secured with screws or adhesive.
  • The height of the Backflip is 53mm so functionality may be affected if it is positioned above drawers, especially with thin benchtops.

Positioning of EVOline® Backflip

  • We recommend as a general rule that the Backflip be positioned at least 500mm horizontally from any kitchen sink.
  • However, the Backflip can be located up to 150mm horizontally from a sink if the sink has the capacity less than 45 litres. But, to be safe, stick to 500mm horizontally away from the water.

NB: Product shown in attached installation diagrams is the European model showing European electrical sockets - for demonstration purposes only. EVOline Backflip is sold in New Zealand to local standards.



Click here to download the instructions

EVOline® Port

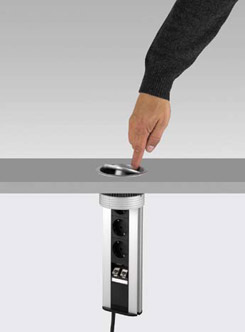

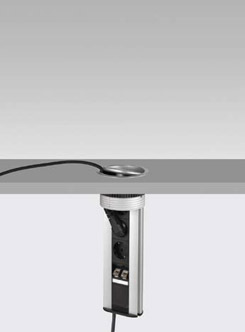

The Revolutionary Power Tower

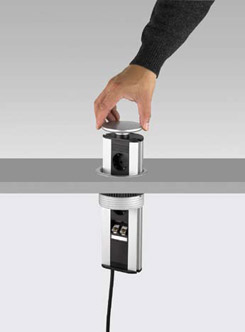

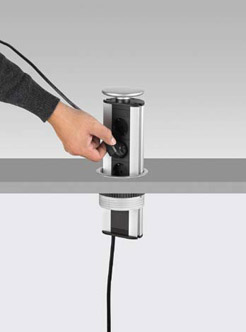

  • The EVOline® Port gives you power to a table top or kitchen benchtop without ugly or dangerous trailing cords or leads.
  • Use the EVOline® Port in kitchens, conference rooms, offices, hotels - wherever saftey, design and order are important.

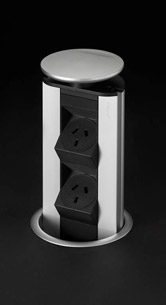

EVOline® Port P2P

  • 2 x angled power sockets
  • Silver, black or white rocker cover, plastic lacquered
  • Clear anodised aluminium profile
  • 3m power cable with NZ plug
  • Max 10A
  • Worktops - max 50mm thickness
  • Mounting hole - 102mm
  • Pullout height - 200mm
  • Total diameter - 127mm

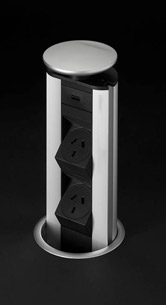

EVOline® Port P2P1USB

  • 2 x angled power sockets
  • 1 x USB - mominal output current 1000mA (charging)
  • Silver, black or white rocker cover, plastic lacquered
  • Clear anodised aluminium profile
  • 3m power cable with NZ plug
  • Max 10A
  • Worktops - max 50mm thickness
  • Mounting hole - 102mm
  • Pullout height - 225mm
  • Total diameter - 127mm

EVOline® Port P3P

  • 1 x thermal overload switch
  • 3 x angled power sockets
  • Silver, black or white rocker cover, plastic lacquered
  • Clear anodised aluminium profile
  • 3m power cable with NZ plug
  • Max 10A
  • Worktops - max 50mm thickness
  • Mounting hole - 102mm
  • Pullout height - 310mm
  • Total diameter - 127mm

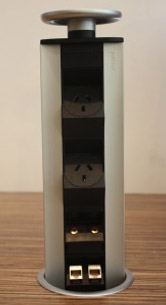

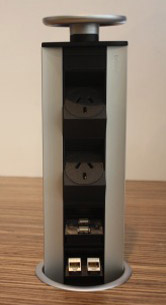

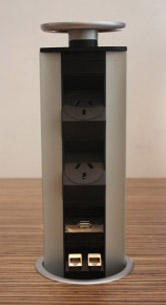

EVOline® Port - P2P1USB2D

  • 2 x angular power sockets
  • 1 x USB with 3m cable and plug (PC connection)
  • 2 x RJ45 data sockets (Cat. 6) - cables not provided
  • Silver rocker cover, plastic lacquered
  • Clear anodised aluminium profile
  • 3m power cable with NZ plug
  • Max 10A
  • Worktops - max 50mm thickness
  • Mounting hole - 102mm
  • Pullout height -296mm
  • Total height - 372mm
  • Total diameter - 127mm

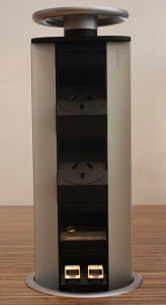

EVOline® Port - P2P1A2D

  • 2 x angular power sockets
  • 1 x audio 3.5mm jack with 3m cable and plug
  • 2 x RJ45 data sockets (Cat. 6) - cables not provided
  • Silver rocker cover, plastic lacquered
  • Clear anodised aluminium profile
  • Max 10A
  • 3m power cable with NZ plug
  • Worktops - max 50mm tickness
  • Mounting hole - 102mm
  • Pullout height - 296mm
  • Total height - 372mm
  • Total diameter - 127 mm

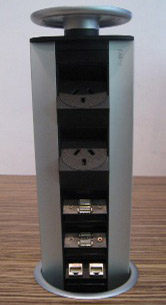

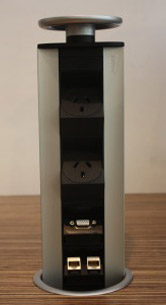

EVOline® Port - P2P1VGA2D

  • 2x angular power sockets
  • 1x VGA HDD with 3m cable and plug
  • 2x RJ45 data sockets (Cat. 6) - cables not provided
  • Silver rocker cover, plastic lacquered
  • Clear anodised aluminium profile
  • Max 10A
  • 3m power cable with NZ plug
  • Worktops - max 50mm tickness
  • Mounting hole - 102mm
  • Pullout height - 296mm
  • Total height - 372mm
  • Total diameter - 127 mm

EVOline® Port - P2P2USB2D

  • 2x angular power sockets
  • 2x USB with 3m cables and plugs (PC Connection)
  • 2x RJ45 data sockets (Cat. 6) - cables not provided
  • Silver rocker cover plastic lacquered
  • Clear anodised aluminium profile
  • 3m power cable with NZ plug
  • Max 10A
  • Worktops - max 50mm tickness
  • Mounting hole - 102mm
  • Pullout height - 296mm
  • Total height - 372mm
  • Total diameter - 127 mm

EVOline® Port - P2P2A2D

  • 2x angular power sockets
  • 2x audio 3.5mm jacks with 3m cables and plugs
  • 2x RJ45 data sockets (Cat. 6) - cables not provided
  • Silver rocker cover, plastic lacquered
  • Clear anodised aluminium profile
  • 3m power cable with NZ plug
  • Max 10A
  • Worktops - max 50mm tickness
  • Mounting hole - 102mm
  • Pullout height - 296mm
  • Total height - 372mm
  • Total diameter - 127 mm

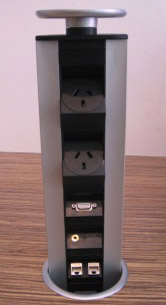

EVOline® Port - P2P1VGA1A2D

  • 2x angular power sockets
  • VGA HDD with 3m cable and plug
  • 1x Audio 3.5mm jack with 3m cable and plug
  • 2x RJ45 data sockets (Cat. 6) - cables not provided
  • Silver rocker cover, plastic lacquered
  • Clear anodised aluminium profile
  • 3m power cable with NZ plug
  • Max 10A
  • Worktops - max 50mm tickness
  • Mounting hole - 102mm
  • Pullout height - 296mm
  • Total height - 372mm
  • Total diameter - 127 mm

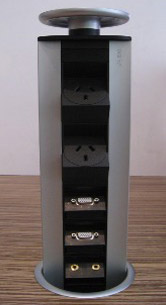

EVOline® Port - P2P2VGA2A

  • 2x angular power sockets
  • 2x VGA HDD with 3m cables and plugs
  • 2x audio 3.5mm jack with 3m cables and plugs
  • Silver rocker cover plastic lacquered
  • Clear anodised aluminium profile
  • 3m power cable with NZ plug
  • Max 10A
  • Worktops - max 50mm tickness
  • Mounting hole - 102mm
  • Pullout height - 296mm
  • Total height - 372mm
  • Total diameter - 127 mm

EVOline® Port - P2P2VGA2D

  • 2x angular power sockets
  • 2x VGA HDD with 3m cables and plugs
  • 2x RJ45 data sockets (Cat. 6) - cables not provided
  • Silver rocker cover, plastic lacquered
  • Clear anodised aluminium profile
  • 3m power cable with NZ plug
  • Max 10A
  • Worktops - max 50mm tickness
  • Mounting hole -102mm
  • Pullout height - 296mm
  • Total height - 372mm
  • Total diameter - 127 mm

EVOline® Port - P2P4USB2D

  • 2 x angular power sockets
  • 4 x USB with 3m cables and plugs (PC Connection)
  • 2 x RJ45 data sockets (Cat. 6) - cables not provided
  • Silver rocker cover, plastic lacquered
  • Clear anodised aluminium profile
  • 3m power cabe with NZ plug
  • Max 10A
  • Worktops - max 50mm tickness
  • Mounting hole - 102mm
  • Pullout height - 296mm
  • Total height - 372mm
  • Total diameter - 127 mm

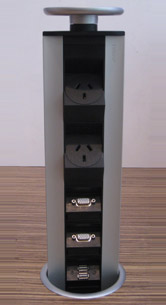

EVOline® Port - P2P2VGA2USB

  • 2 x angular power sockets
  • 2 x VGA HDD with 3m cables and plugs
  • 2 x USB with 3m cables and plugs (PC Connection)
  • Silver rocker cover, plastic lacquered
  • Clear anodised aluminium profile
  • 3m power cable with NZ plug
  • Max 10A
  • Worktops - max 50mm tickness
  • Mounting hole - 102mm
  • Pullout height - 296mm
  • Total height - 372mm
  • Total diameter - 127 mm

Instructions for EVOline® Port


Click here to download the instructions
